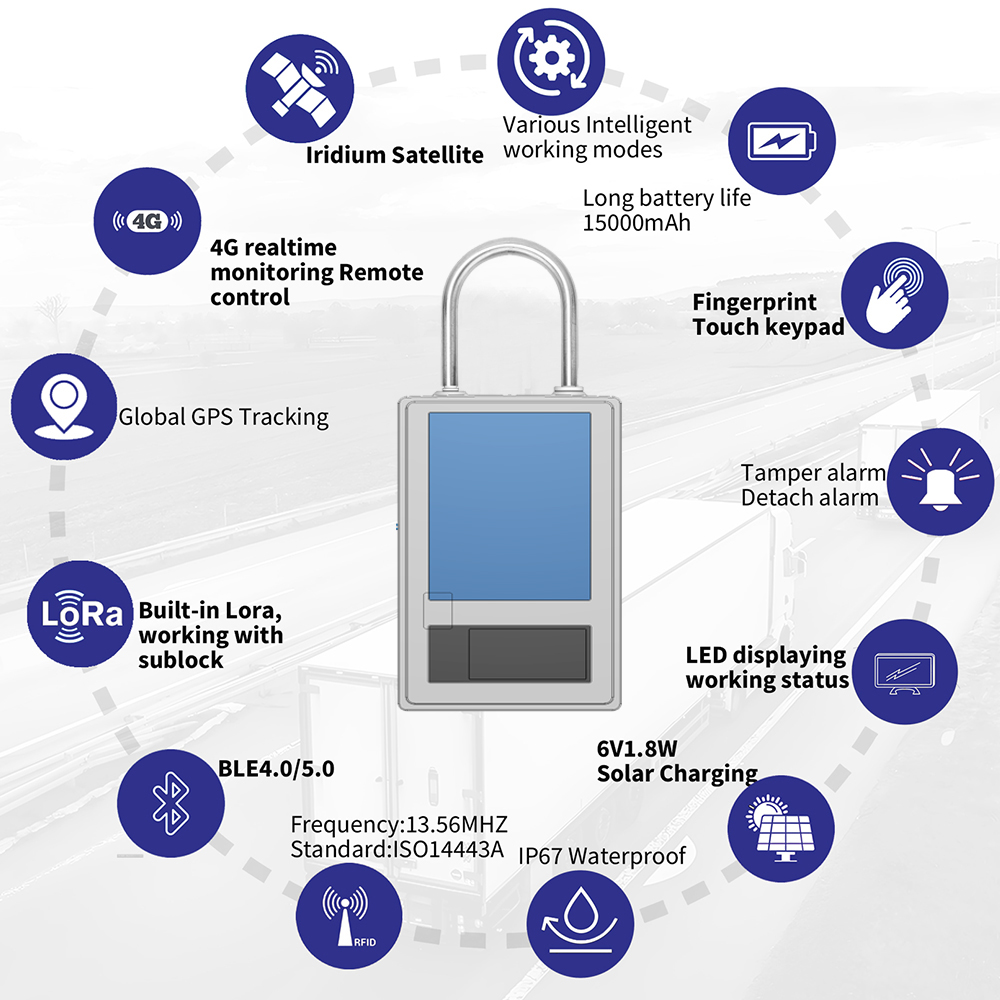

Jlinkiot TL12 Satellite Iridium Lora GPS Padlock
The Jlinkiot TL12 is a configurable hybrid e-lock that serves as the central hub for global asset tracking. It integrates a 15,000mAh rechargeable battery with dual DC and solar charging, and maintains worldwide connectivity through automatic switching between 4G and Iridium satellite networks. Its integrated GPS and IP67 rating ensure reliable performance in diverse environments.
As the Master Lock, the TL12 aggregates data from TL13 Sub-Locks via LoRa communication. It also features Bluetooth for local operations including unlocking, configuration, and data exchange. The lock's comprehensive functionality can be tailored to specific application requirements, providing a scalable and cost-efficient monitoring platform for a wide range of asset management scenarios.
Features:
1)Built-in 4G/Iridium module
2)Built-in GPS module
3)Built-in LoRa /Bluetooth module(optional)
4)Built-in larger Rechargeable battery 15000mAh
5)With LED display
6)With touch keypad
7)With solar charging
8)Support Lock ON/UNLOCK/rope cut/tamper/detach /vibration/lower power alarm
9)Support different sleep mode.
10)Support IP67 waterproof standard
Technical Parameter:
Name | Parameters |
Iridium satellite module | 9602N |
9602N Typical Power Consumption at +5.0 VDC
| Idle Current (average*): 35mA; Idle Current (peak): 170mA; Transmit Current (peak): 1.3A; Transmit Current (average*): 140mA; Receive Current (peak): 170mA; Receive Current (average*): 40mA; SBD message transfer - average current*: 150mA SBD message transfer - average power*: <=0.8 W |
Satellite Frequency | 1616MHz - 1626.5MHz |
Solar panel | 6V 1.8W Solar panel |
Solar panel Typical Electrical Characteristics
| Solar Cells: Mono crystalline Solar Cell; STC Conditions: 1000W/㎡; 1.5AM and Cell Temperature 25℃; Efficiency: 21%; Max Power Output: 1.8W±5%; Vmp: 6V±5%; Imp: 300mA±5%; Voc: 7.2V±5%; Isc: 325mA±5%; Operating Temperature: ‐40℃ to +80℃; Storage Temperature: ‐20℃ to +25℃(Humidity not greater than 60%); Power Tolerance: ‐5% to 5%; Cell Quantities: 22 pieces; Battery conversion efficiency (%): 22%. |
Solar panel Physical Characteristics
| Module Dimension: 112x95x3mm; Tolerance of Dimension: ±0.2mm; Tolerance of Thickness: ±0.2mm. |
4G | EC200N-CN LTE-FDD: B1/B3/B5/B8/B28/B66 LTE-TDD: B34/B38/B39/B40/B41 GSM:B3/B8 |
RFID | Support NFC card sealing, unsealing, wake-up operations Frequency: 13.56MHZ Standard: ISO14443A |
GPS chip
| (Zhongke Microelectronics) AT6558R Acquisition sensitivity: -148dBm Tracking sensitivity: -162dBm GPS frequency: L1, 1575.42MHz Locate Sensitivity: <5m,CEP Hot start(average): <1s Cold start(average): <30s |
Display | OLED display, which can visually display information such as power, signal, lock status, etc. |
Sleep mode Current | Around [email protected] battery |
Back-up Battery | 15000mAh rechargeable lithium battery |
Size | 195*116*46mm(without Bottom fixed tray) 195*242*65mm(with Bottom fixed tray) |
Tracker weight | 1000g |
Working temperature (High Temp battery) | -30℃ - +75℃ |
Moisture | 5% - 95% |
LED Indicator | Use red/green/blue/green/(red/orange/green) seven color LED indicator to show the status ofGSM/GPS/Iridium/Lora/power(charging/low power/charge full) status |
Lora(optoinal) | LLCC68ZTR4-GC(can cooperate with LORA wireless sub-lock, LORA wireless temperature and humidity sensor, and other peripherals to achieve extended interconnection. Suitable for multi-door monitoring, temperature, and humidity monitoring of car cargo.) |
Unlock ways | APP, Web, RFID Card, SMS, Bluetooth App, Lora, Geofence Rules |
Working frequency | 433MHz |
Transmitting current | Max 120mA |
Receiving current | 5mA |
Sleep current | 1uA |
Transmit power | 22dBm |
Receiving sensitivity | -129dBm |
Power supply | 1.8V-3.7V (standard 3.3V) |
Communicate distance | Max 5KM(open area,under ideal conditions) |
Transmission speed | 1~62.5Kbps |
Communicate Interface | SPI |
Antenna impedance | 50Ω |
Working temperature | -40~+85℃ |
